nx9-auth

Enterprise Identity & Access Management (IAM) written entirely in Rust.

Self-hosted • Privacy-first • Linux-native • Single Binary • Multi-Tenant • Open Source

---

Part of the NX9 ecosystem.

---

Overview

nx9-auth is a modern Identity & Access Management (IAM) server built entirely in Rust, designed for organizations that require secure, self-hosted authentication and authorization without the complexity of traditional enterprise IAM platforms.

Unlike heavyweight Java-based IAM systems, nx9-auth focuses on:

• Security first
• Operational simplicity
• Low resource usage
• Fast deployment
• Modern REST APIs
• Complete ownership of your data

The project is designed as the authentication foundation for the NX9 ecosystem, while remaining completely independent and reusable for any application.

---

Dashboard

---

Features

Identity Management

• ✅ Multi-Tenant Architecture
• ✅ User Management
• ✅ User Profiles
• ✅ Groups
• ✅ Role Based Access Control (RBAC)
• ✅ Fine-grained Permissions
• ✅ Applications
• ✅ Service Accounts

Authentication

• ✅ Username / Password
• ✅ Session Management
• ✅ API Tokens
• ✅ Personal Access Tokens
• ✅ Password Reset
• ✅ Secure Cookie Authentication

Security

• ✅ Argon2id Password Hashing
• ✅ Session Revocation
• ✅ Token Revocation
• ✅ Security Headers
• ✅ Audit Logging
• ✅ Rate Limiting
• ✅ No Plaintext Password Storage
• ✅ No Plaintext Token Storage
• ✅ Transaction Rollback Protection

Administration

• ✅ Dashboard
• ✅ Audit Viewer
• ✅ Settings
• ✅ Tenant Management
• ✅ Profile Management

Database

• ✅ SQLite
• 🚧 PostgreSQL
• 🚧 MySQL

---

Screenshots

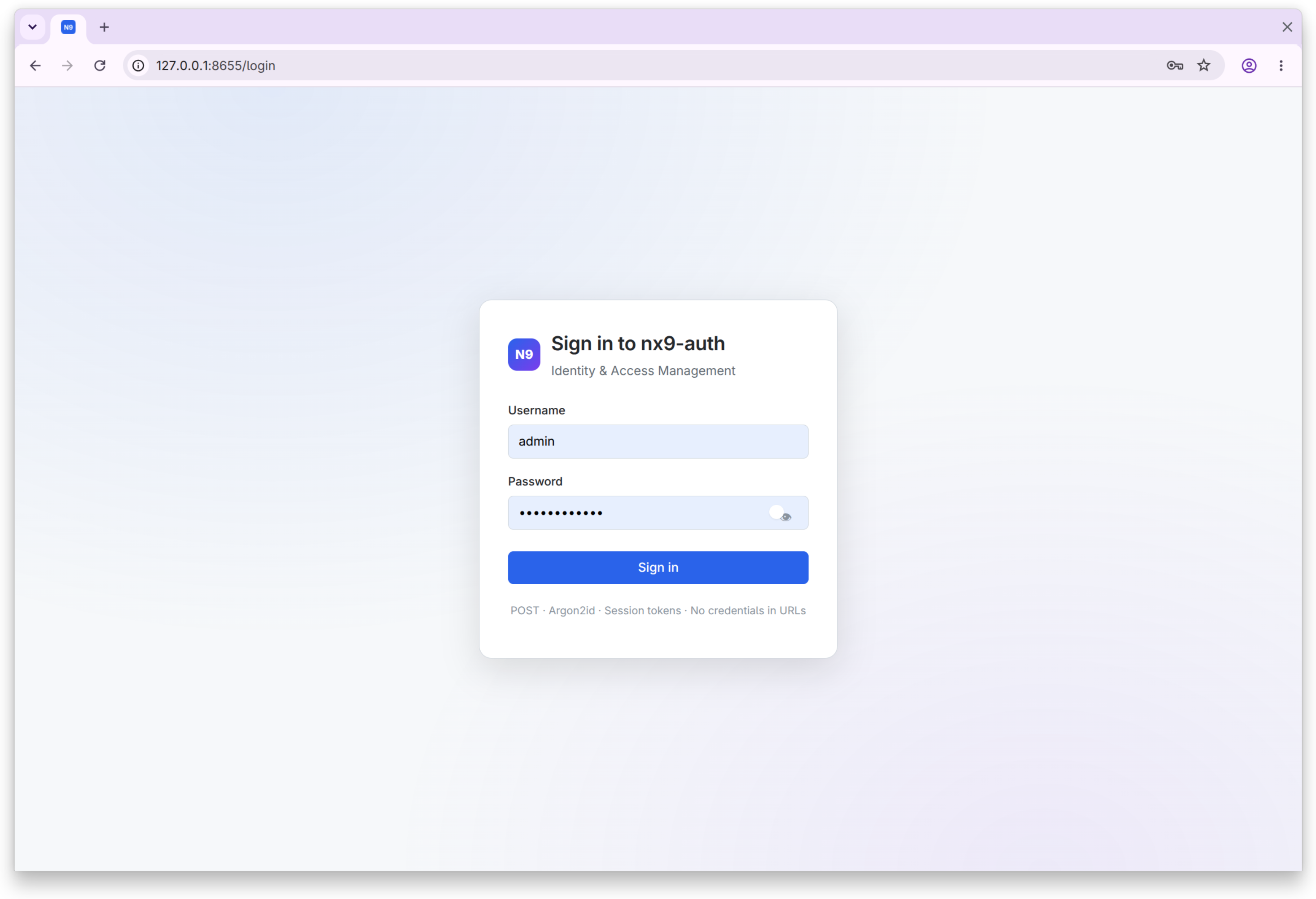

Login

---

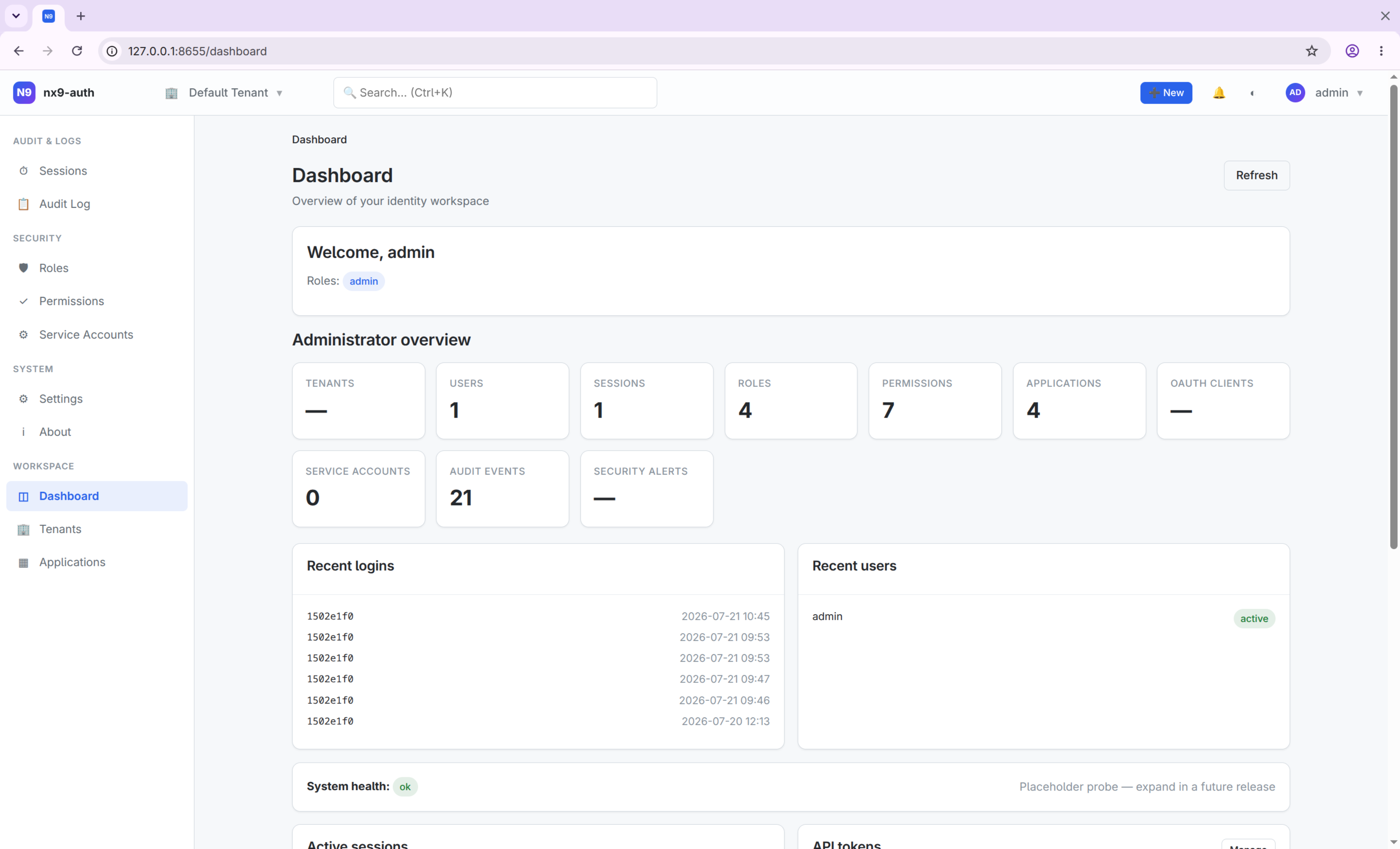

Dashboard

---

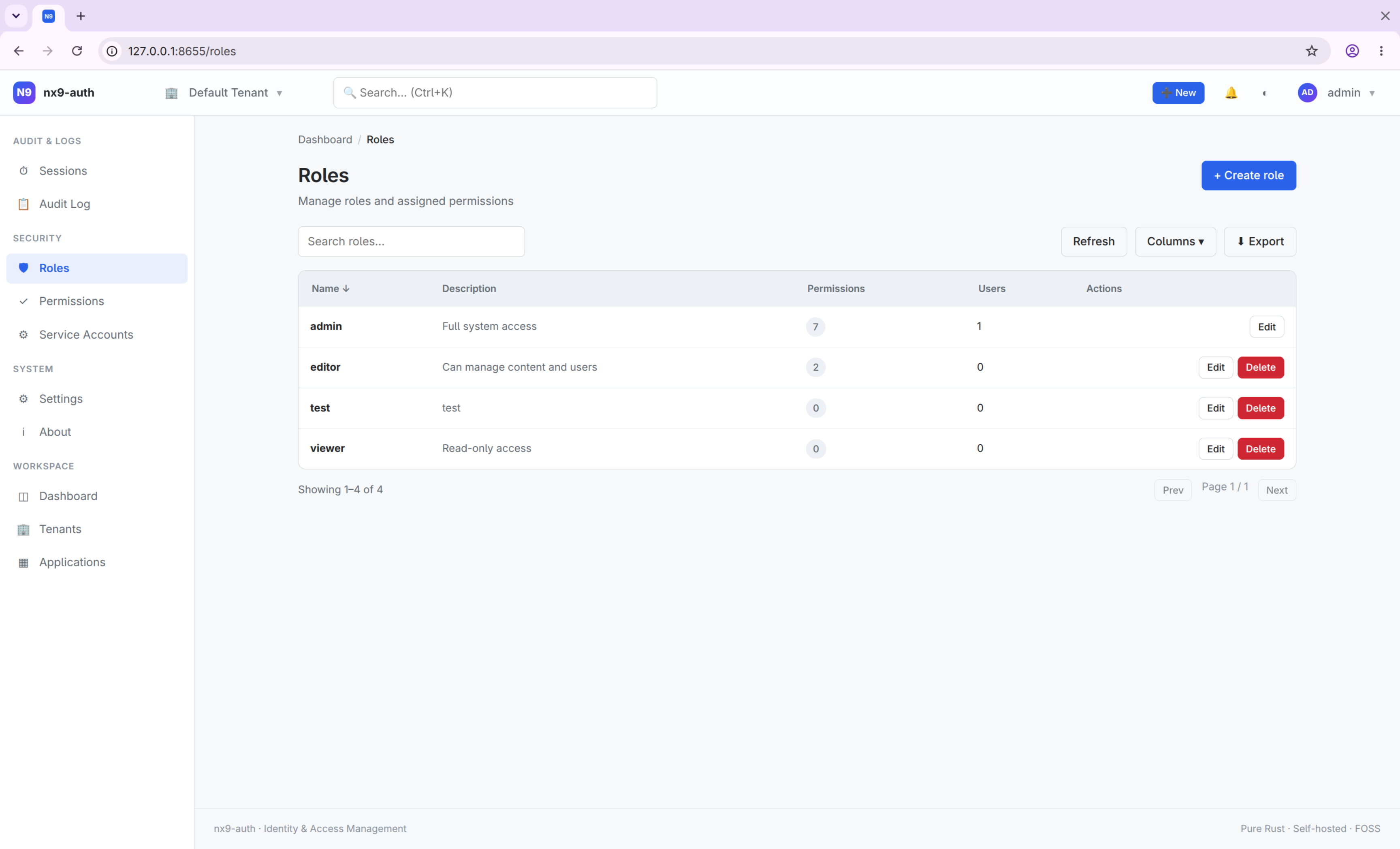

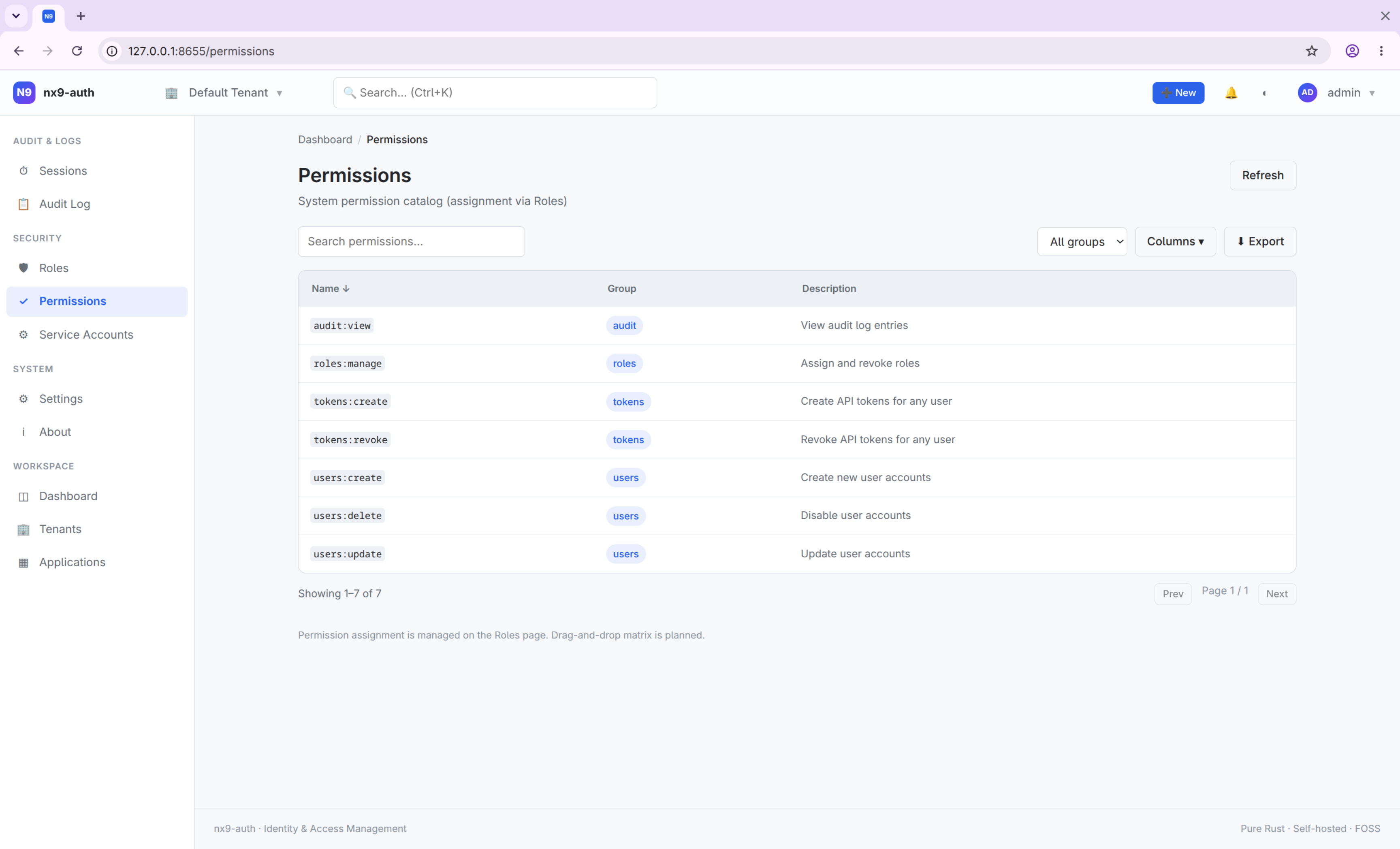

Roles & Permissions

Roles	Permissions

---

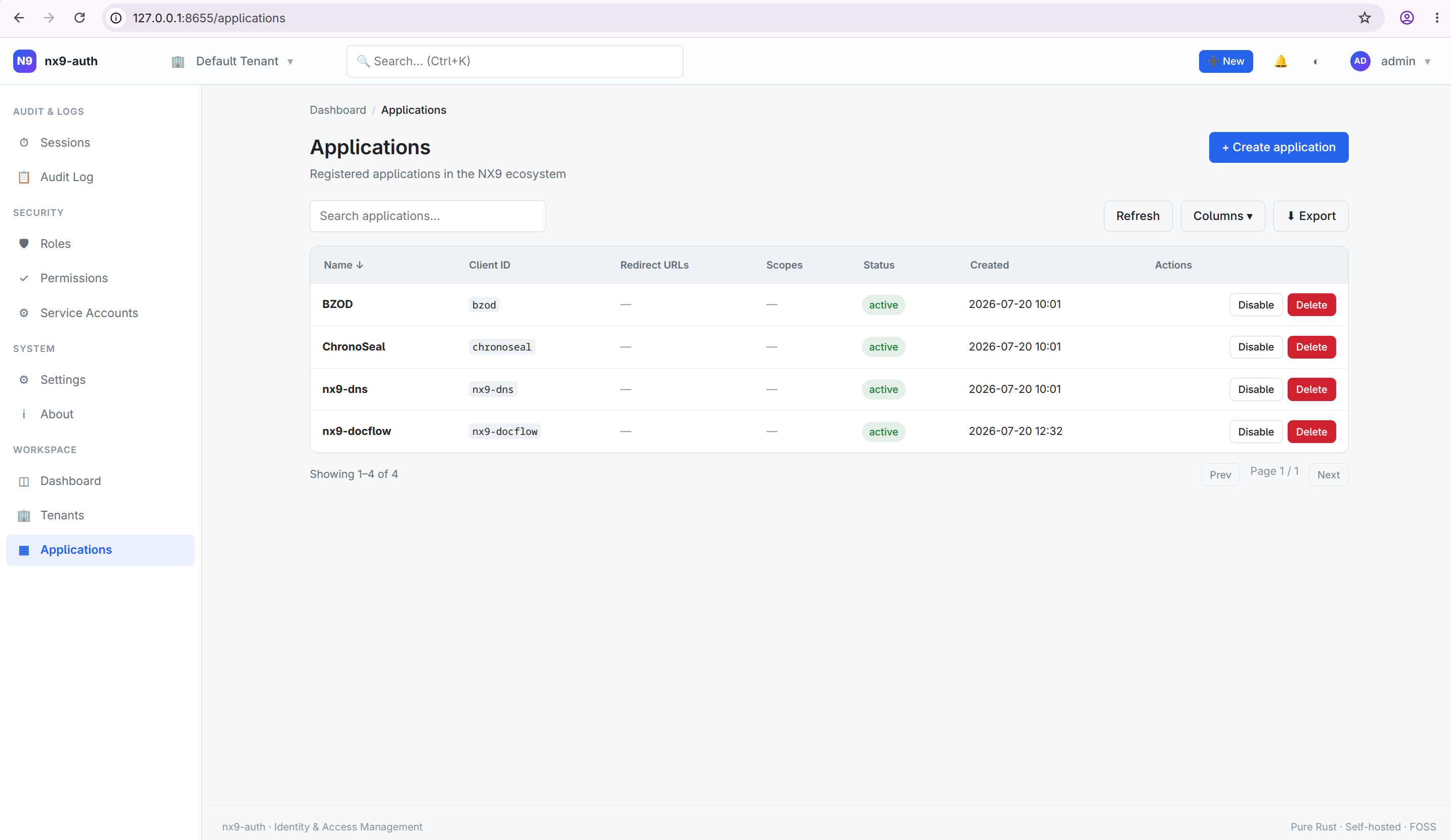

Applications

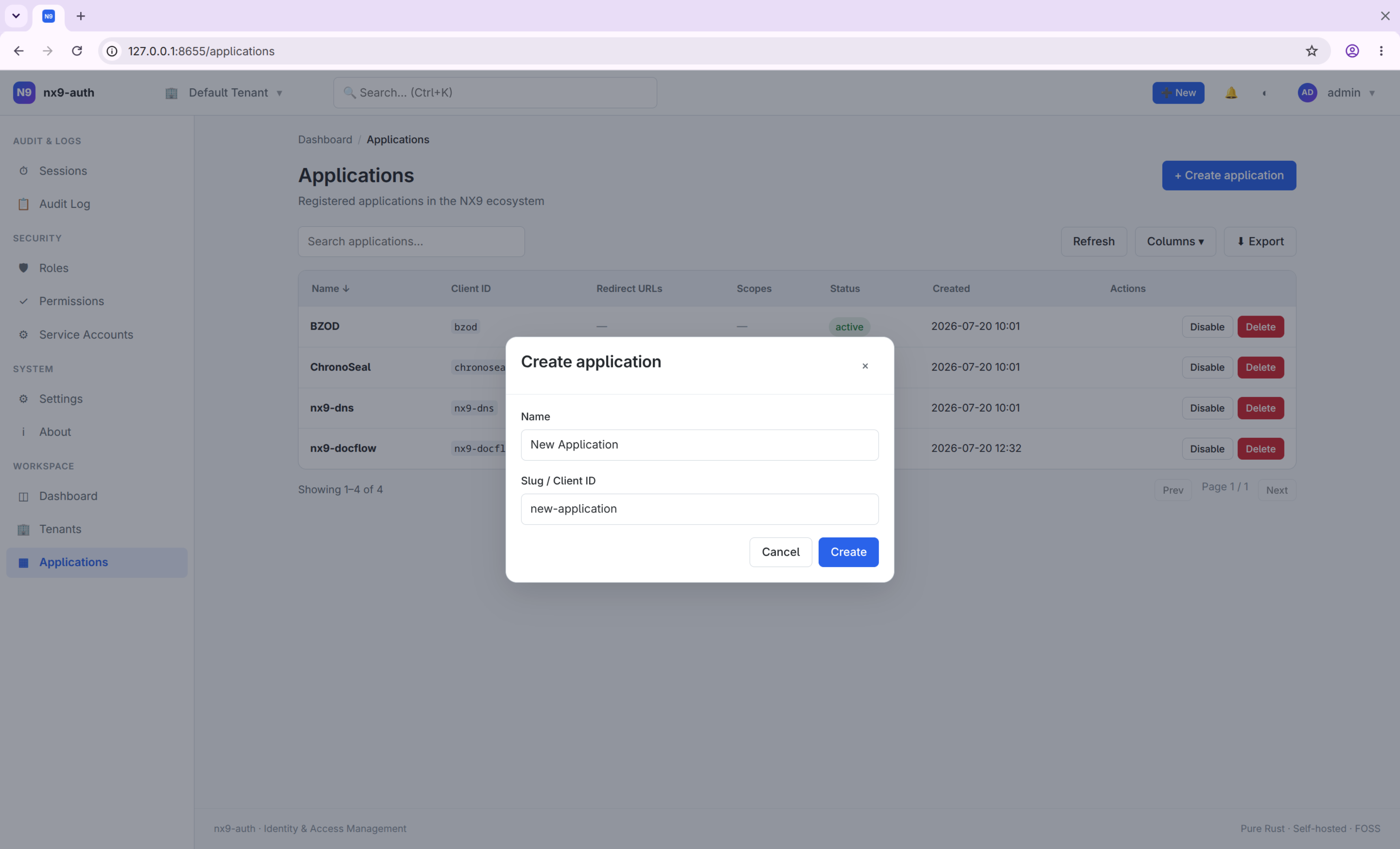

Applications	Create Application

---

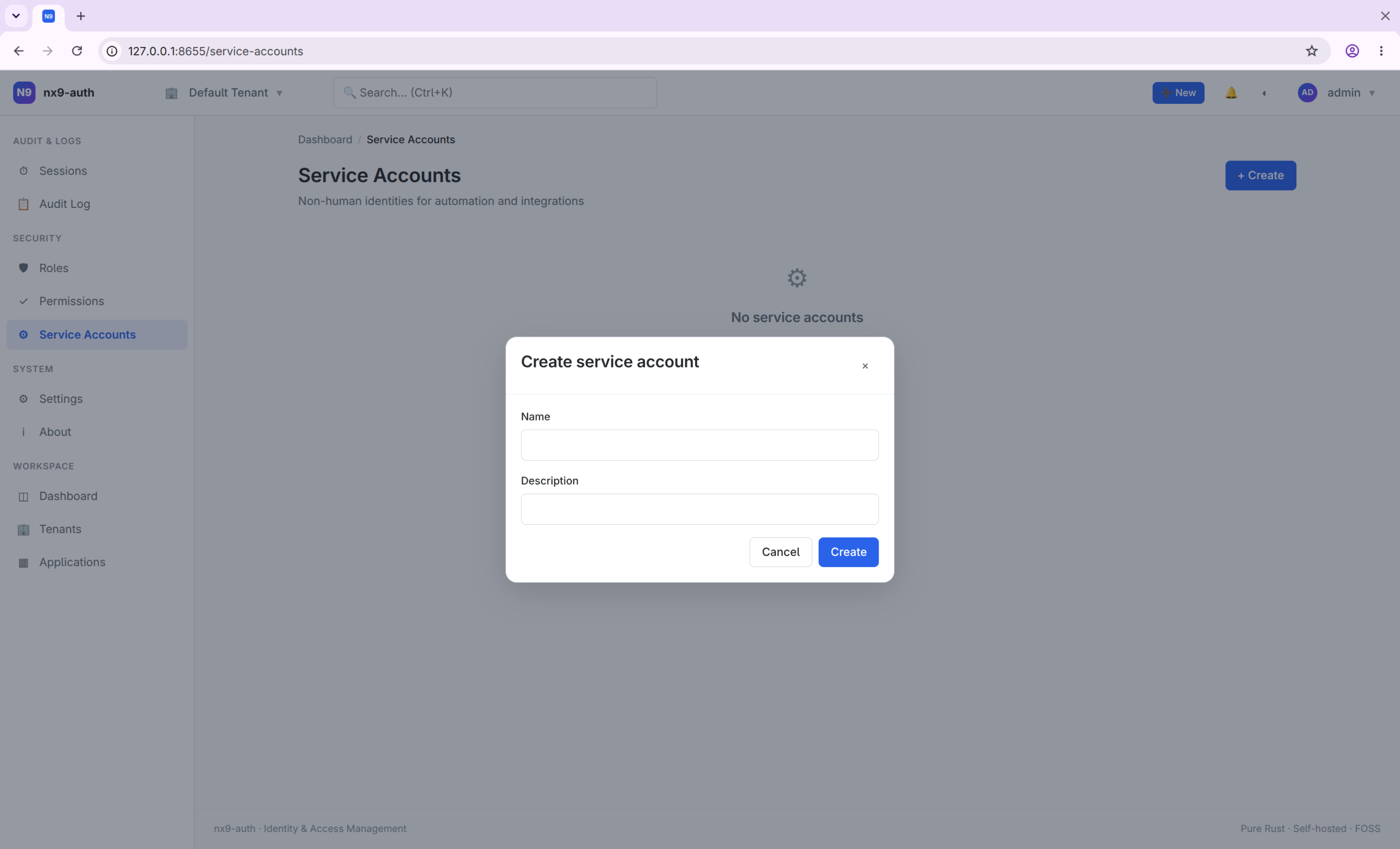

Service Accounts

---

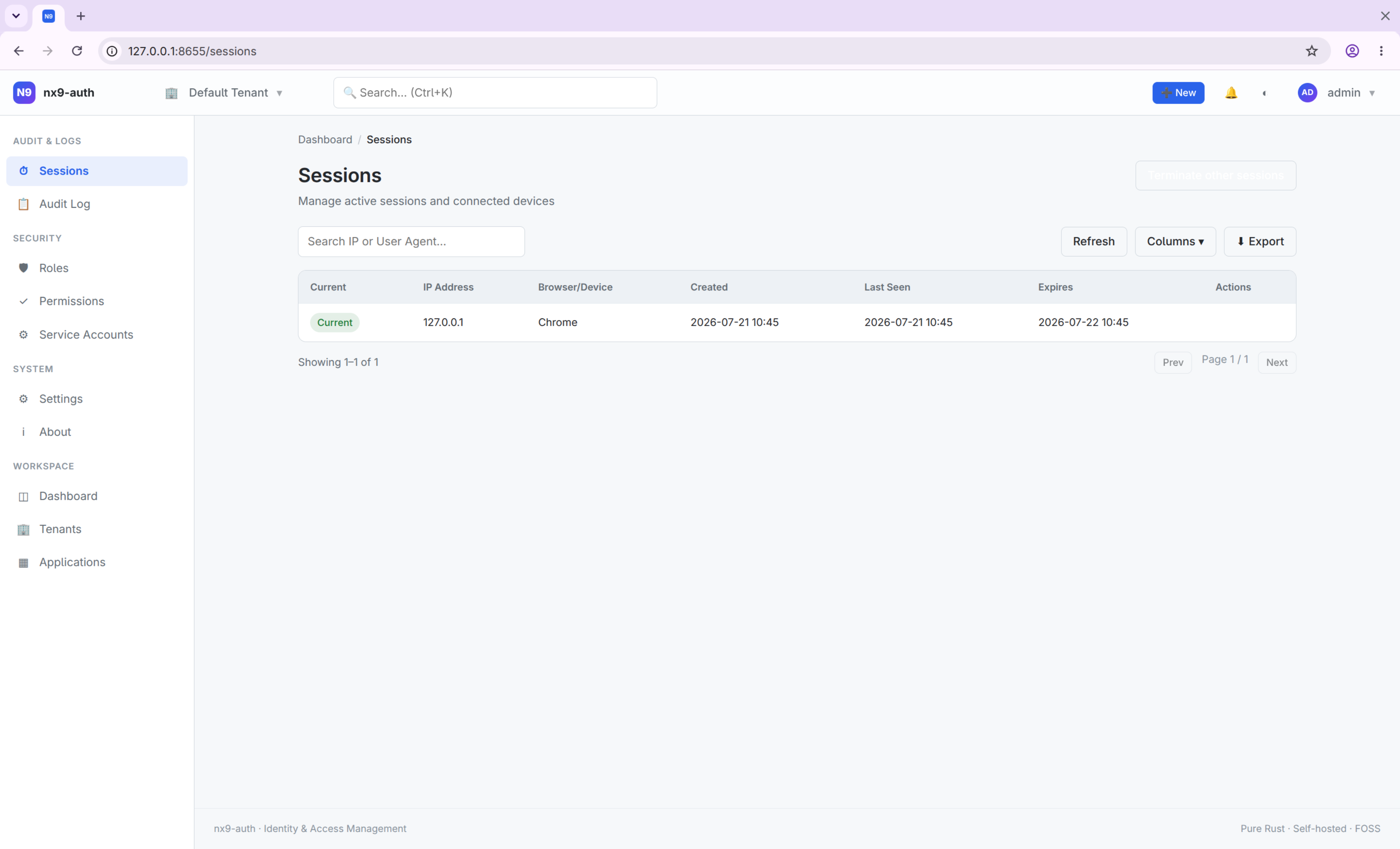

Sessions

---

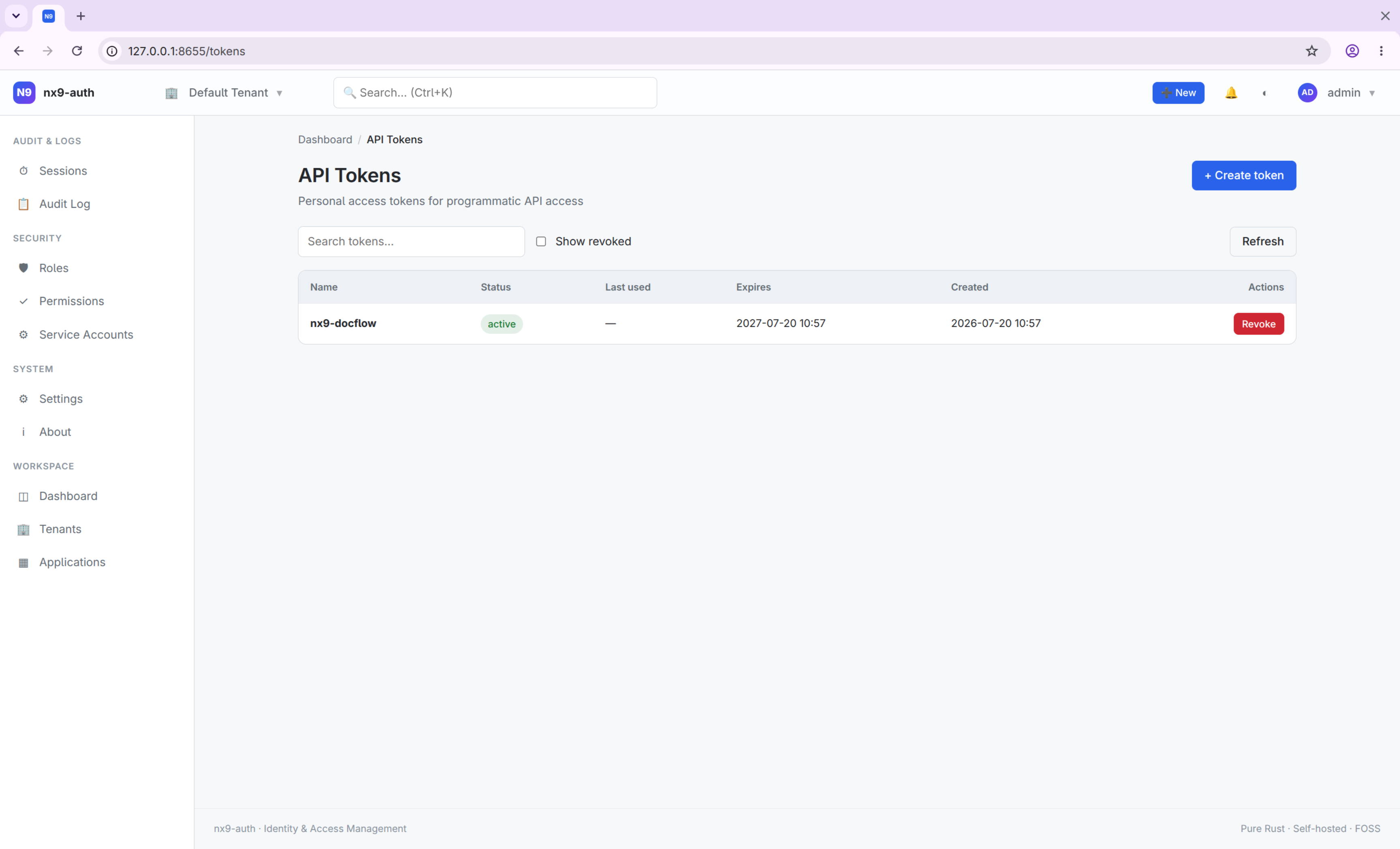

API Tokens

---

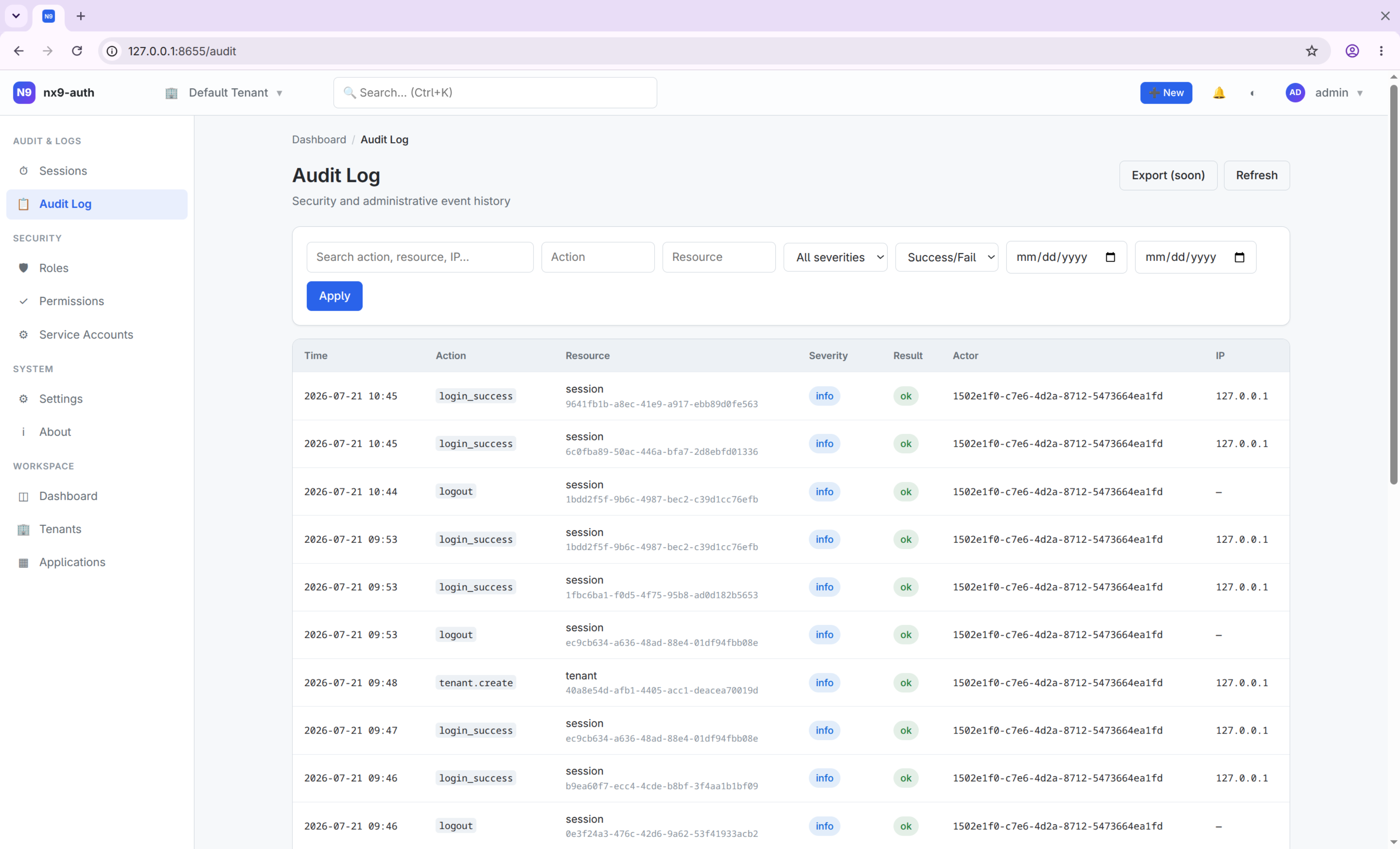

Audit Log

---

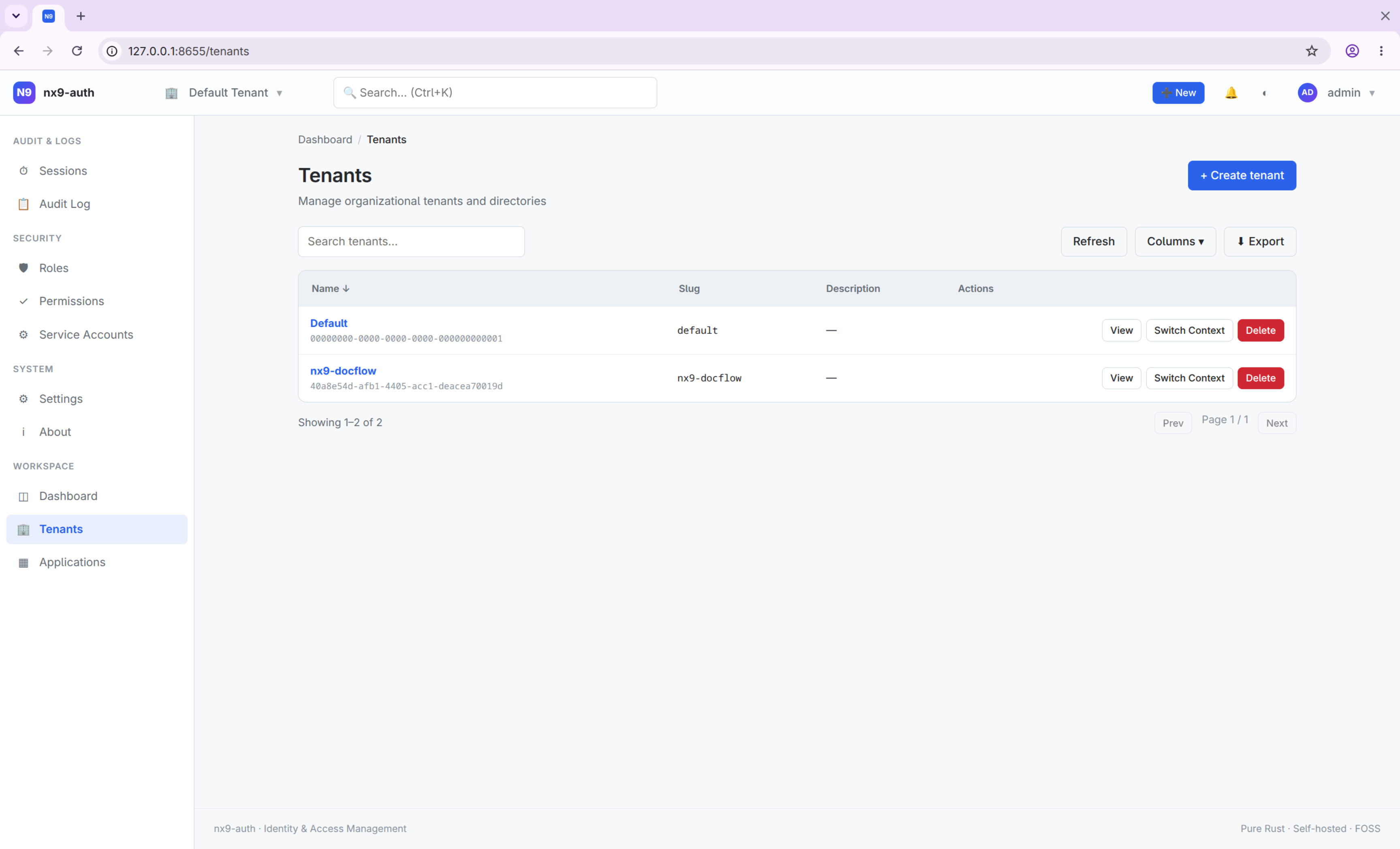

Tenants

---

Settings

---

Why nx9-auth?

Traditional Enterprise IAM	nx9-auth
Java based	Rust
Large memory footprint	Lightweight
Complex deployment	Single Binary
Multiple services	Minimal dependencies
Cloud-first	Self-hosted
Vendor lock-in	Open Source
Large attack surface	Minimal attack surface

---

Architecture

                Browser

                    │

                    ▼

            Dioxus Web UI (WASM)

                    │

                    ▼

              REST API (Axum)

                    │

                    ▼

          Authentication Layer

                    │

                    ▼

          Authorization (RBAC)

                    │

                    ▼

          Repository Layer

                    │

                    ▼

          Database Provider

                    │

        ┌───────────┴───────────┐
        │                       │
     SQLite                 PostgreSQL
     (Current)               (Planned)

---

Technology Stack

Component	Technology
Language	Rust
Backend	Axum
Frontend	Dioxus
Database	SQLite
Async Runtime	Tokio
Authentication	JWT + Cookies
Password Hashing	Argon2id
ORM	SQLx
Serialization	Serde

---

Quick Start

Clone the repository

git clone https://github.com/thakares/nx9-auth.git
cd nx9-auth

Build

cargo build --release

Initialize

./target/release/nx9-auth init

Run Setup Wizard

./target/release/nx9-auth setup

Start Server

./target/release/nx9-auth serve

Open

http://localhost:8655

---

Configuration

Create your local configuration from the example:

cp config.example.toml config.toml

Then edit:

• Database
• Server
• Session
• Security
• SMTP
• Logging

---

CLI

Command	Description
init	Initialize project
setup	Interactive setup wizard
serve	Start server
migrate	Run migrations
backup	Backup database
restore	Restore database
user	User management
token	API token management

---

REST API

Endpoint	Description
/api/v1/auth	Authentication
/api/v1/users	Users
/api/v1/groups	Groups
/api/v1/roles	Roles
/api/v1/permissions	Permissions
/api/v1/applications	Applications
/api/v1/service-accounts	Service Accounts
/api/v1/sessions	Sessions
/api/v1/tokens	API Tokens
/api/v1/audit	Audit Logs
/api/v1/profile	Current User
/api/v1/dashboard	Dashboard

---

Docker

docker compose up -d

---

CasaOS

docker compose -f compose.casaos.yml up -d

---

Security

Security is a primary design goal.

Implemented features include:

• Argon2id password hashing
• Password strength validation
• Secure session cookies
• Session revocation
• API token hashing
• Audit logging
• Rate limiting
• Transaction rollback protection
• Security headers
• Authorization middleware
• RBAC
• Permission middleware
• No plaintext passwords
• No plaintext session tokens
• No plaintext API tokens

---

Project Structure

docs/               Documentation
scripts/            Build & release scripts
src/                Backend
tests/              Integration tests
ui/                 Dioxus frontend

src/api             REST API
src/db              Database
src/security        Security
src/middleware      Middleware
src/identity        Identity services
src/config          Configuration

---

Documentation

Additional documentation is available in the docs/ directory.

• AUTHENTICATION.md
• BACKUPS.md
• BENCHMARKS.md
• DEPLOYMENT.md
• DOCKER.md
• INTEGRATION_BZOD.md

---

Testing

Run all tests

cargo test

Run Clippy

cargo clippy --workspace --all-targets --all-features -- -D warnings

Run formatter

cargo fmt --all

---

Current Status

Feature	Status
Authentication	✅
RBAC	✅
Sessions	✅
Audit Logs	✅
Applications	✅
Service Accounts	✅
API Tokens	✅
Dashboard	✅
SQLite	✅
PostgreSQL	🚧
OAuth2	🚧
OpenID Connect	🚧
WebAuthn	🚧
MFA	🚧

---

Roadmap

Version 0.2

• SQLite
• REST API
• Dashboard
• Multi-Tenant
• RBAC
• Sessions
• Audit Logging

Version 0.3

• PostgreSQL
• Repository Improvements

Version 0.4

• OAuth2
• OpenID Connect
• LDAP

Version 0.5

• WebAuthn
• Multi-Factor Authentication

Version 1.0

• Stable Enterprise Release

---

Philosophy

The NX9 ecosystem follows a simple philosophy:

• Self-hostable first
• Linux-native
• Privacy-first
• Open Source
• Minimal dependencies
• Operational simplicity
• Single binary where practical
• No vendor lock-in

---

Contributing

Contributions are welcome.

Please:

1. Open an issue before major changes.
2. Follow Rust formatting (cargo fmt).
3. Ensure Clippy passes without warnings.
4. Add tests for new functionality.
5. Keep documentation up to date.

---

License

Licensed under the MIT License.

---

nx9-auth — Secure, self-hosted Identity & Access Management built with Rust.

Part of the NX9 ecosystem.
